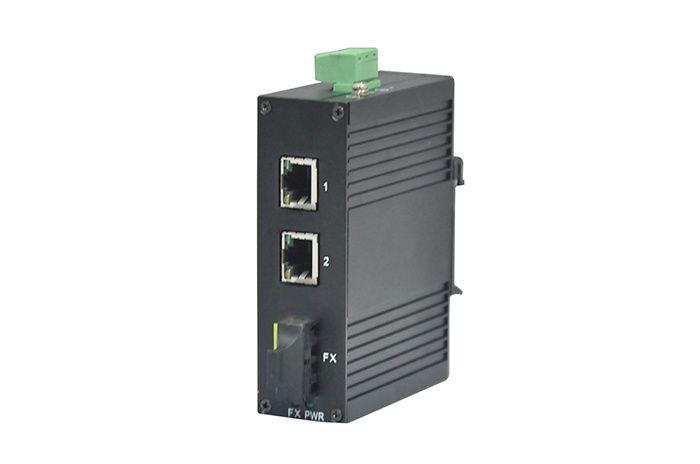

IDS1002F1 2 100M RJ45 ports + 1 100M SFP slot rail-type industrial switch

IDS1002F1 2-port 100M RJ45 + 1-port 100M SFP slot rail-type industrial switch

Port type

Electrical port & optical port

Uplink port rate

100 Mbps

Downlink port rate

100 Mbps

Number of ports

3 ports

Management type

Management-free

POE power supply

Management hierarchy

Product Overview

Technical Parameters

Application scenarios

Optional information

File download

Product information

The IDS1002F1 series is an industrial-grade rail-mounted switch independently developed by Shenzhen Haina Times Electronics Co., Ltd. The IDS1002F1 provides 2 Fast Ethernet electrical ports and 1 Fast Ethernet SFP port, supporting IEEE802.3/802.3u/802.3x, IEEE802.3ab, with MDI/MDI-X auto-sensing RJ45 ports. The IDS1002F1 features a high-strength IP40 protection-rated housing, industrial Grade 4 EMC design, supports Auto-Negotiation technology, and comprehensive LED status indicators, providing a flexible and stable solution for your Ethernet connections. The operating temperature of the IDS1002F1 industrial switch is -40 ~ 75 °C (wide temperature grade), suitable for any industrial environment, and supports DIN rail or wall-mount installation, and can also be conveniently placed in compact control cabinets with limited space. It supports a wide-range power input (12~57V DC) to enhance the reliability of communication networks. Based on industrial installation requirements, it offers two mounting modes: DIN35 rail or wall-mount. The IDS1002F1 industrial switch is a plug-and-play industrial-grade device, making it a reliable solution for your industrial automation networking.

The packet loss rate of a single network port is 0%;
Under bidirectional transmission of the network port code stream, the port rate is 100%
With a frame length of 1518 bytes, the average latency should be less than 10us
The optical port transmit optical power is greater than -4.6dBm
The Ethernet electrical ports support speed and duplex mode auto-negotiation, straight-through, and crossover auto-sensing modes

Product Features

● Compliant with IEEE802.3, IEEE 802.3u, IEEE 802.3ab

● Supports 2 10/100TX RJ45 ports and 1x100M optical port

● High backplane bandwidth of 1Gbps

● IEEE802.3x flow control

● Surge protection for power ports and data ports

● Wide power input: 12〜57VDC

● Wide operating temperature: -40〜75℃

● IP40 aluminum housing

● MTBF 200,000 hours

● EMI: FCC Part 15. CISPR(EN55022) class A

● EMS: EN61000-4-2(ESD), EN61000-4-3(RS),

● EN61000-4-4(EFT), EN61000-4-5(Surge),

● EN61000-4-6(CS), EN61000-4-6(common mode conduction)

● Industrial: IEC6100-6-2

● Railway: EN50155.EN50121-4

● Transportation: NEMA TS-2

● Warranty: 5 years

Properties
Network Interface	210 /100m RJ45 copper ports. 100M optical port
LED Indicators	Power, port speed, port link
Copper Cable
10Base-T	2-pair UTP/STP Cat. 3,4,5/5E,6 cable EIA/TIA-568 100-ohm (100m)
100Base-T	2-pair UTP/STP Cat. 5/5E,6 cable EIA/TIA-568 100-ohm (100m)
Performance
Switching Capacity	0.6 Gbps
Forwarding Rate	744K
Forwarding Mode	Store and forward
Packet Buffer Memory	512 Kbit
MAC Address Table	1K
Physical Properties

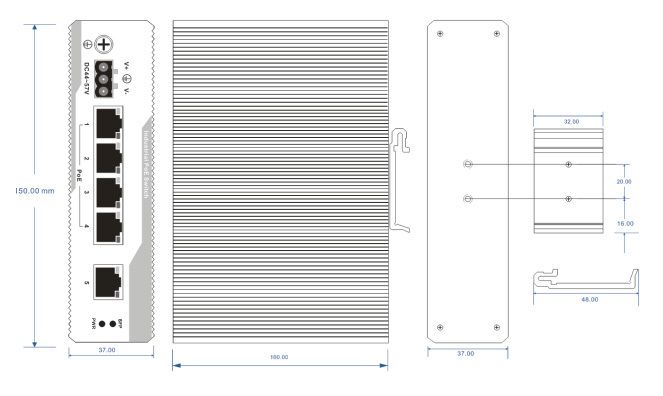

Dimensions	127x78x32mm
Weight
Operating Temperature	0 to 40℃
Storage Temperature	-10 to 70℃
Operating Humidity	5 to 95% non-condensing
Input Voltage Range	12-57VDC
Maximum Power Consumption	5W
EMC Safety	FCC, CE, RoHS
Reliability
Packaging
Industrial Ethernet Switch	1pcs
User Manual	1pcs

Switch Model
IDS1002F1	2FE+1SFP Rail-mounted Unmanaged Industrial Ethernet Switch
Optical Module
SFP-M-LC-R5	100M Optical Module, Multimode, 500M, 850nm, LC
SFP-S-LC-20	100M Optical Module, Single-mode, 20km, 1310nm, LC

PRODUCTS

Product Recommendation

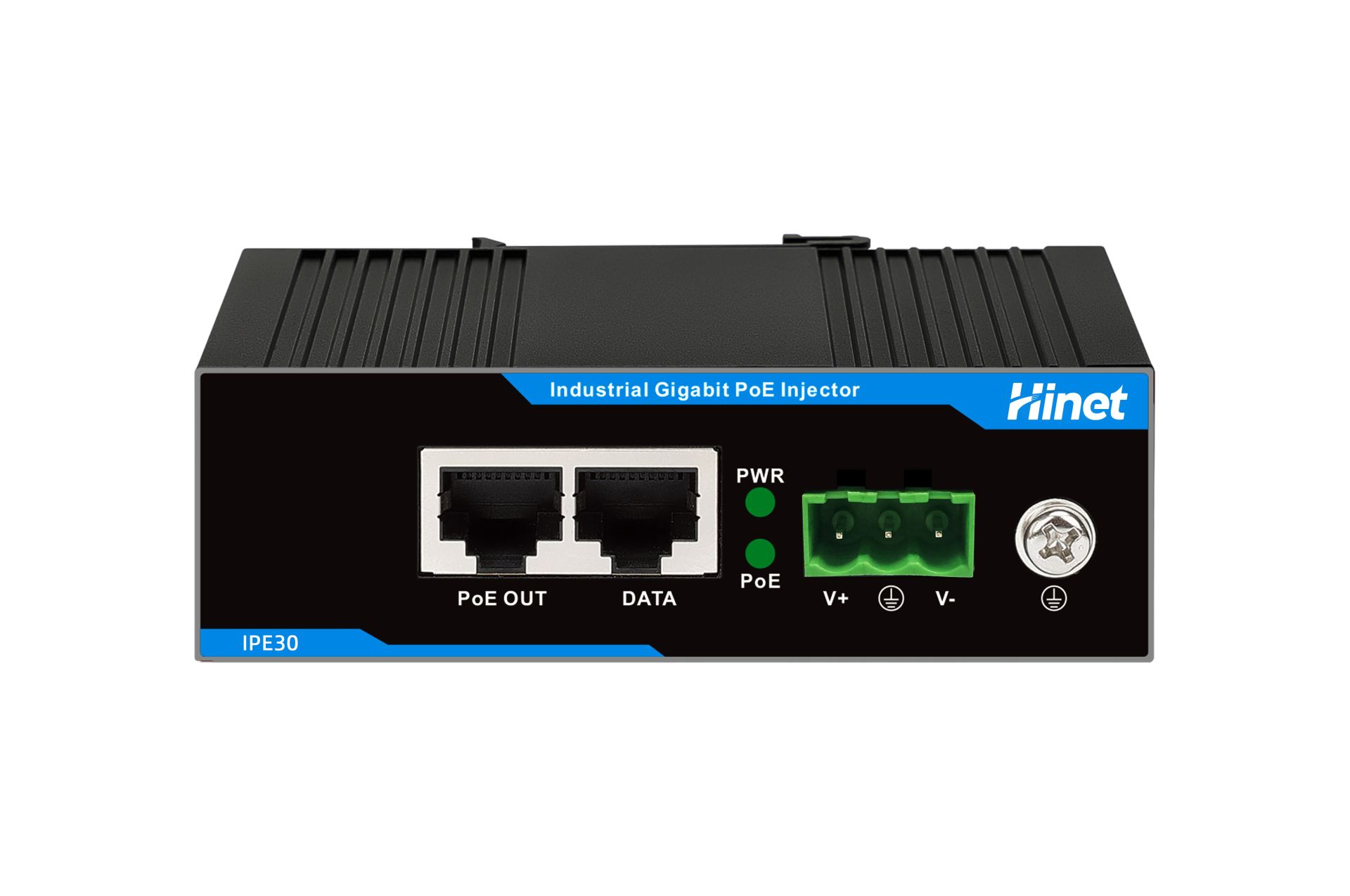

IPE30 (30W) Industrial-Grade DIN-Rail Power Supply

Industrial-grade single-port PoE injector (1G/2.5G/5G/10G adaptive)

Switch product category：

Products

Port type：

Electrical port

Uplink port rate：

Downlink port rate：

100M, 1G, 2.5G, 10G

Number of ports：

Management type：

No management

POE power supply：

802.3af,802.3at,802.3bt

Management hierarchy：

IPE60 (60W) Industrial-Grade DIN-Rail Power Supply

Industrial-grade single-port PoE injector

Switch product category：

Products

Port type：

Electrical port

Uplink port rate：

Downlink port rate：

100M, 1G, 2.5G, 10G

Number of ports：

Management type：

No management

POE power supply：

802.3af,802.3at,802.3bt

Management hierarchy：

IPE90-bt (90W) Industrial-grade DIN-rail Power Supply

Industrial-grade single-port PoE injector

Switch product category：

Products

Port type：

Electrical port

Uplink port rate：

Downlink port rate：

100M, 1G, 2.5G, 10G

Number of ports：

Management type：

No management required

POE power supply：

802.3af,802.3at,802.3bt

Management hierarchy：

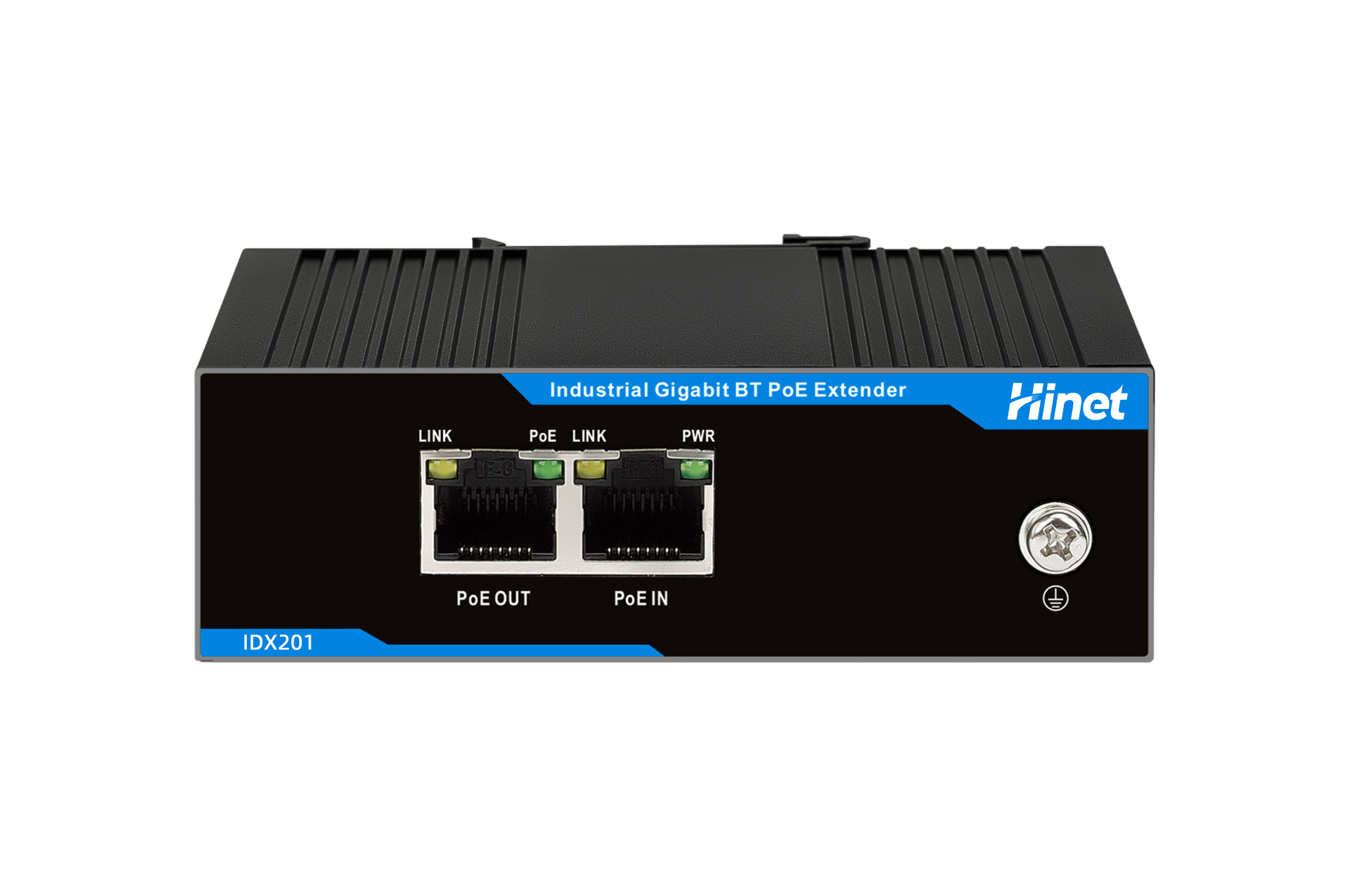

IDX201 Industrial-Grade DIN-Rail One-In-One-Out Extender
